* ATTENTION * If you already own our Universal Cartridge Adapter and would like to modify and reuse it with the Mini-Pro Lifter, please choose the Lifter Only option. For new users or those that don't want to modify their original adapter, please choose the Mini-Pro System kit, which includes a modified adapter.
The Mini-Pro Lifter and Cartridge Arrestor System is the next step in the evolution of short-cartridge cycling capability. Taking the success of our Universal Cartridge Adapter and 590S Cartridge Arrestor Upgrade Kits to the next-level, Mini-Pro is not an adapter; it is an OEM-like solution that addresses the heart of the shotgun's functionality, where the entire factory lifter/elevator is replaced with our Mini-Pro Lifter and 590S Cartridge Arrestor System. This means you can essentially upgrade most Mossberg pump-action 12-Gauge shotguns with a 3" receiver to a true 590S-like configuration (not compatible with 590R).
The Mini-Pro Lifter is constructed of hardened steel and blackened to match the factory finish. The cam profile has been optimized to accommodate minishells, and the bolt carrier rails have been polished to smooth out the action and provide a "broken-in" feel. The legs of the lifter are slightly biased in the open position to ensure plenty of residual pressure is applied to the pivot pins so they can't jump out of their respective holes if the firearm is dropped (see this video starting at minute marker 4:25 for more info: https://youtu.be/87XSOnQrCYg).
The Cartridge Arrestor is exactly the same as our 590S upgrade design and is constructed from vulcanized thermoplastic rubber. The follower is machined from solid 6061-T6 billet aluminum and is finished in a hard, safety-red anodized coating.
This system is compatible with any Mossberg 500, 590 or Maverick 88 pump-action 12-Gauge firearm with machined grooves in the receiver. Please refer to the picture or the installation video below to confirm your firearm's compatibility, but we've never seen a Mossberg pump-action firearm without these grooves.
*Please note our Universal Cartridge Adapter is forward-compatible with the Mini-Pro System with a simple modification. If you already own the Universal Cartridge Adapter and would like to reuse it, you will only need to purchase the Mini-Pro Lifter. See video for more details.
**Apply a thin coating of gun oil to all lifter surfaces prior to installation.
***The Mini-Pro Lifter, Cartridge Arrestor and Magazine Follower are optimized to function as a system, however the factory and other aftermarket followers may function as well for those that do not wish to use the follower provided.
****A short break-in period is recommended for the Mini-Pro Cartridge Arrestor, cycle 4-5 magazines of 2-3/4" cartridges thru the firearm before trying to feed 1-3/4" or 3" cartridges (can be dry-cycled if you have a safe place).
I love this in my shockwave. Not the easiest to install but definitely not difficult. Just gotta pay close attention to instructional video. Cycles very smooth. And ejects cartridges better now than before. Thanks!
Ordered just the lifter as I already had the mini pro adapter and follower. Huge defender tactical fan. I initially had a issue with the lifter freezing up my pump, I reached out to the support, and Wes helped me and promptly sent out a replacement. I have had zero issues sense. Amazing product, cycles both mini and full size shells with no issues. Amazing customer service and products. Will always recommend DT to anyone.
Easy to install- video is very helpful to aid in this process.
Tested with a mix of minis and 2 3/4 shells as well as all mini shells.
Performed seamlessly with out jamming or binding.
Would recommend.
This Mini-Pro System is perfect for the Mossberg 590! It installs quick and easy and provides compatibility with cartridges of differing lengths with no hassle! I'll be installing this on any Mossberg shotgun I buy in the future!!

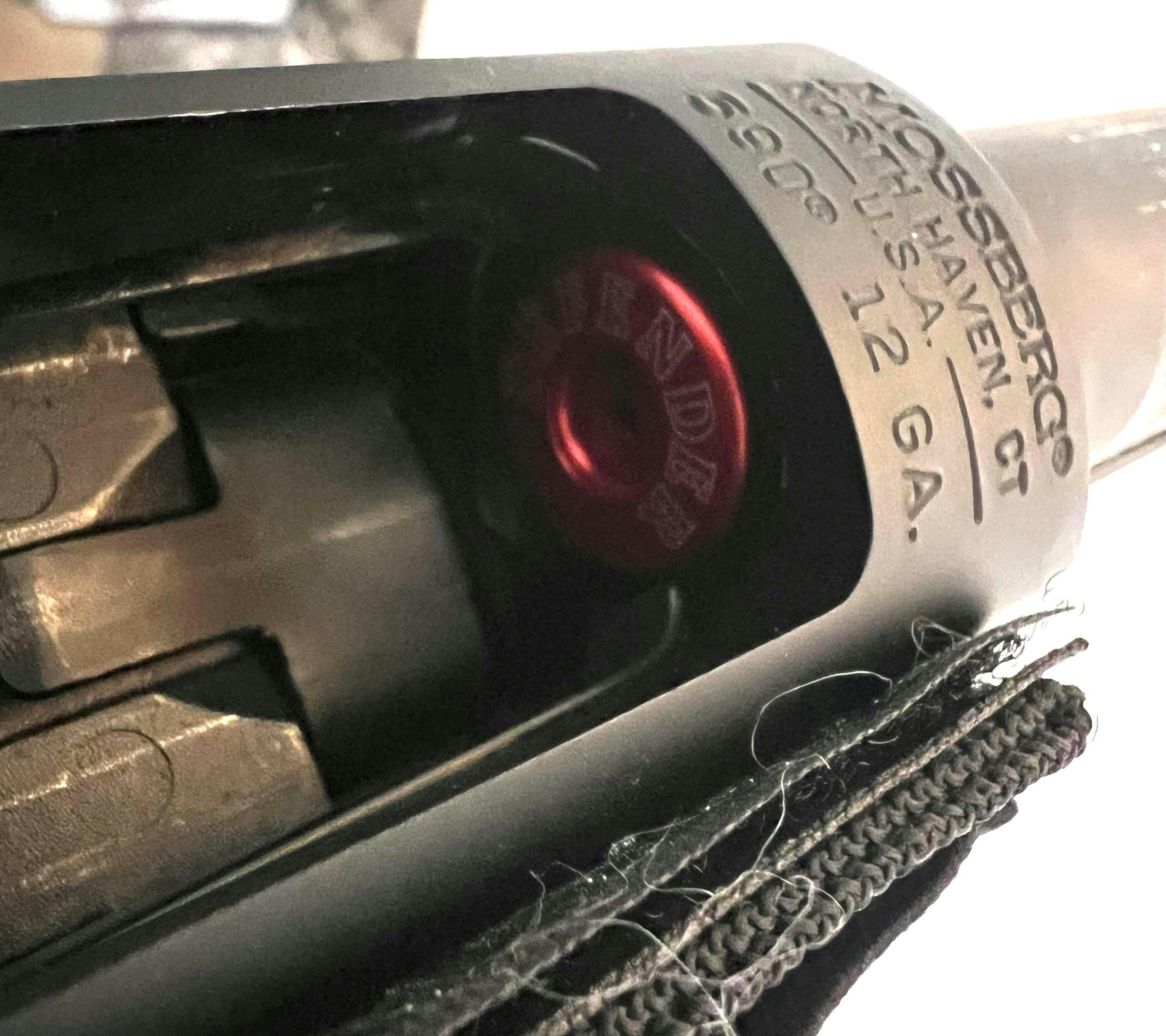

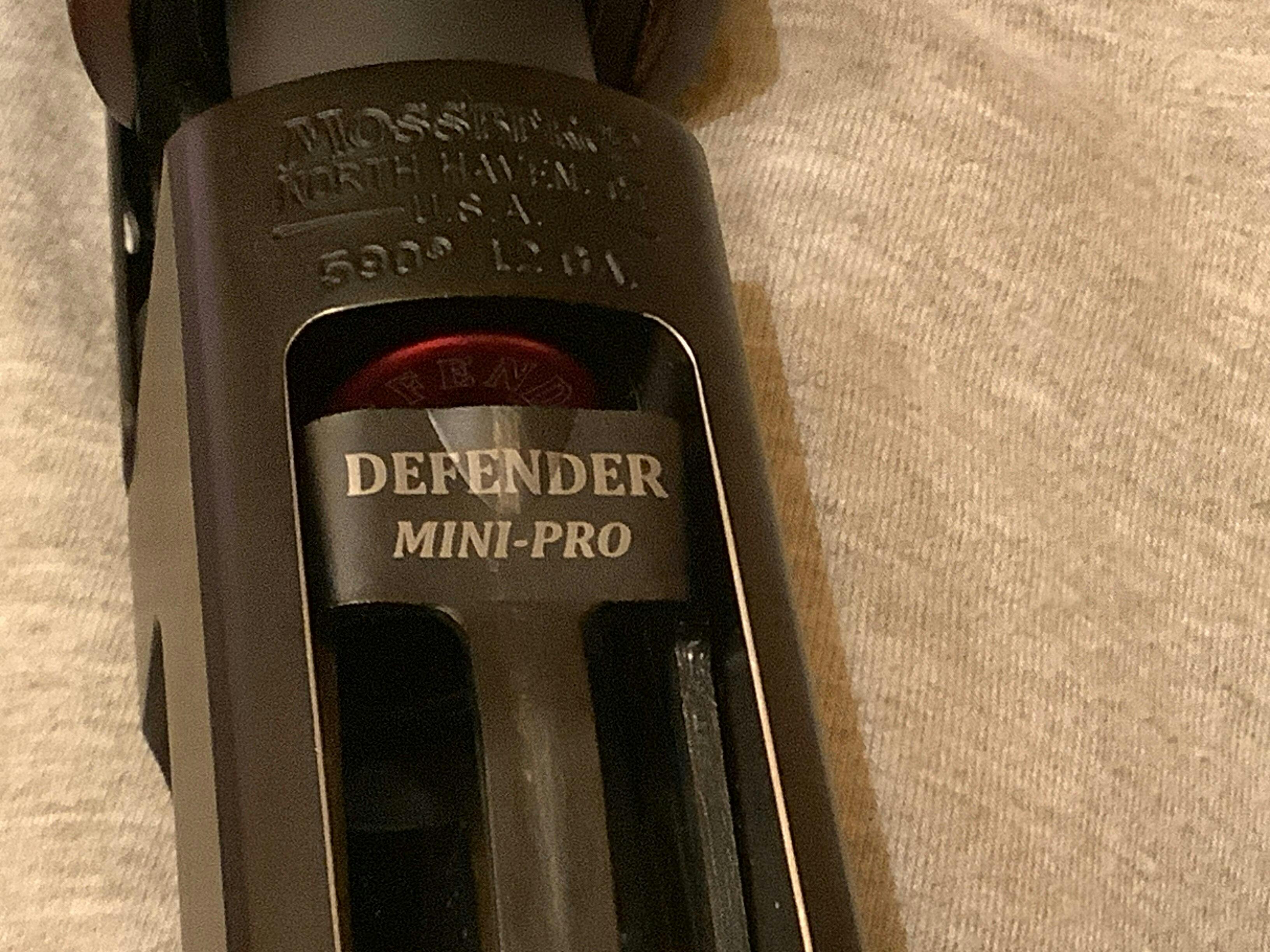

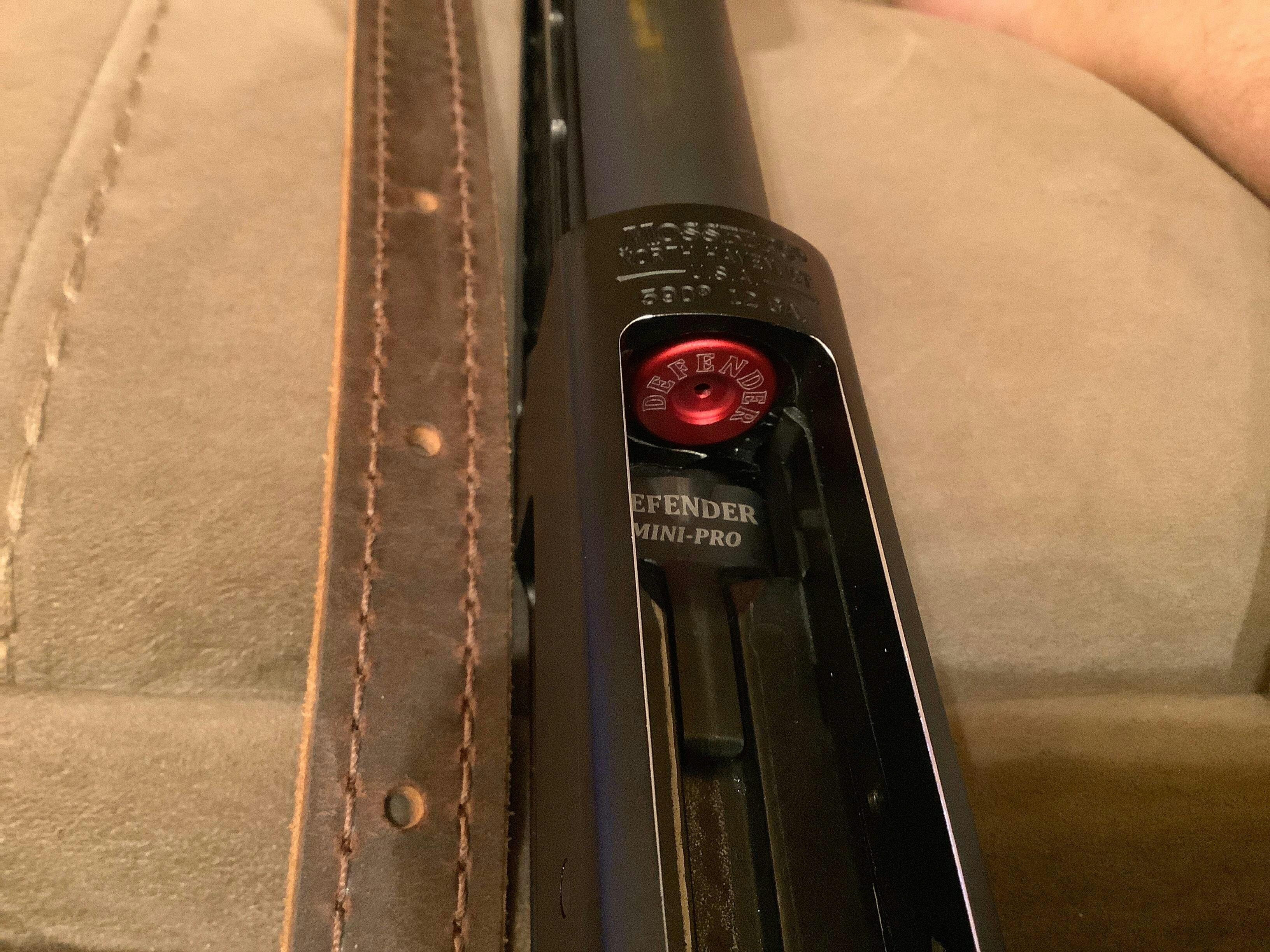

In a matter of minutes i installed the mini pro lifter system to allow my standard 590A1 to use mini-shells flawlessly. From 8 with std 2 3/4" to 13 with 1 3/4" mini shells in the magazine. The high vizibility gollower with center recess gives a good visual and tactile indication of an empty magazine tube.
The only small issue I had was the installation video. It could be more detailed on the reassembly part. Even a small parts diagram would be helpful. That said it all worked out.
